Kiwi: The new Wi-Fi 7 SOM solution from 8Devices

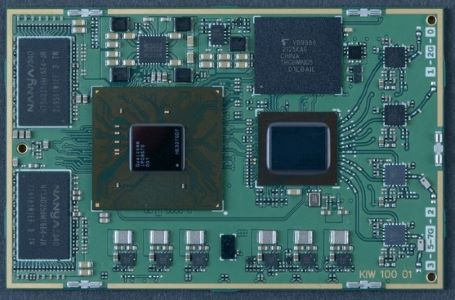

Kiwi is based on the powerful IPQ-9570 network processor from Qualcomm, which is equipped with four Cortex-A73 cores @ 2.2 GHz (1 MB L2 cache). The module has 4 GB eMMC flash and 1 GB LPDDR4X RAM (with expansion option to 2 GB).
Wireless communication is provided by the brand new QCN-9274 Wi-Fi 7 radio chip from Qualcomm, which is connected via PCIe and supports all three frequency bands (2.4 GHz, 5 GHz and 6 GHz). Thanks to the four integrated antennas, Dual Band Simultaneous (DBS) operation is possible on 2.4 GHz & 5 GHz or 2.4 GHz & 6 GHz with two antennas simultaneously - this means 2 x MU-MIMO 2x2.
Kiwi also offers two PHY-MAC interfaces with USXGMII, each supporting one 1/2.5/5/10GE Ethernet PHY and four additional 2.5G Ethernet PHYs via USXGMII-M. Numerous interfaces are also available, including PCIe 3.0 (single lane), 2 x PCIe 3.0 (dual lane), USB 3.0 and various other serial interfaces and GPIOs.
An overview of the most important technical features can be found in the table below:
.jpg)
| Part Number | Kiwi | Kiwi-I | |
| Platform | Module Supplier | 8Devices |
| Chip Supplier | Qualcomm | |
| Chip Part Number | IPQ-9570-0-MSP615-TR-01-0 | IPQ-9570-1-MSP615-TR-01-0 | |
| CPU | Quad Cortex-A73 @ 2.2 GHz (1 MB L2 Cache) | |
| Flash | 4 GB eMMC | |
| RAM | 1 GB LPDDDR4X (up to 2 GB) | |
| OS | Linux OpenWRT | |
| Connectivity | Ethernet | 2 x USXGMII, 1 x USXGMII-M |
| USB | 1 x USB3.0 | |
| PCIe | 1 x PCIe 3.0 (single line) + 2 x PCIe 3.0 (dual line) | |
| Serial Interfaces | 6 x BLSP (SPI/UART/I2C configuration ports), 4 x PWM | |
| GPIOs | 64 | |
| JTAG | yes | |
| Miscellaneous | I2S/TDM, SoundWire, PCM, PDM, 24-bit sample size | |
| Wireless | Standards | WiFi 7 |
| MIMO | 2 x MU2x2, DBS: [2.4 GHz + 5 GHz] or [2.4 GHz + 6 GHz] | |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz | |
| Bandwidth | HT40 @ 2.4 GHz, HT240 @ 5 GHz, HT320 @ 6 GHz | |
| Antenna Data Rate | 688 Mbps @ 2.4 GHz, 4324 Mbps @ 5 GHz, 5764 Mbps @ 6 GHz | |
| Antenna Options | 4 x Pins | |
| Output Power | 27 dBm @ 2.4GHz, 22dBm @ 5GHz, 22dBm @ 6 GHz | |
| No. of Clients | 512 | |
| Module Spec | Power Supply | 3.3V |
| Dimension (mm) | 38.3 x 61.7 | |
| Weight (g) | TBD | |
| Temperature Range | 0°C to +65°C | -40°C to +85°C | |
| Mounting | dual side | |
| Package | LGA | |
| Regulatory Compliance | CE, FCC, IC | |
| DVK | YES | |

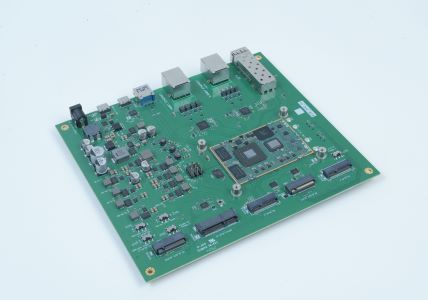

Kiwi is available in both a commercial and an industrial temperature variant, with both versions being CE, FCC and IC certified. Samples and development kits (DVKs) are available in our sample shop.
Further information and datasheets can be found as usual on our Wi-Fi support page:
https://downloads.codico.com/misc/wifi-modules
For further questions, please contact: Peter.Bjoerkstrand@codico.com, Mobile Phone: +46705679708
